PVDC Coated PVC Film for Pharmaceuticals
- PVDC Coating Thickness: 3~10 μm, enhances barrier properties
Tensile Strength (MD/CD): 45~60 / 35~50 MPa
Elongation at Break (MD/CD): 60~100 / 50~90 %
Water Vapor Permeability (WVP): 1~5 g·mm/m²·day (significantly lower than PVC alone)
Oxygen Transmission Rate (OTR): 0.5~2 cm³·m²·day·atm (25°C, 0% RH)
Heat Sealing Temperature: 150~170 °C, suitable for PTP packaging
Thickness: 200~400 μm
Appearance: High transparency, no bubbles, meets pharmaceutical packaging requirements
Product Details
Product Name:

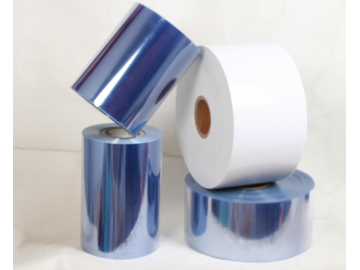

PVC/PVDC Composite Material
Product Specifications:
- Thickness: 0.25-0.40 mm (adjustable according to specific needs to ensure both adequate strength and flexibility).
- Width: 60-1000 mm (multiple width options available to accommodate different packaging sizes).
- PVDC Coating Weight: 40 g, 60 g, 90 g, 120 g (four specifications available; choose the appropriate coating weight based on packaging requirements for optimal barrier performance).
Color Customization:
Colors can be customized to meet the personalized packaging needs of different brands or products.
Product Features:
- High Waterproof Layer: Effectively prevents moisture penetration, protecting pharmaceuticals from humidity.
- Water Vapor and Oxygen Barrier: The PVDC coating provides excellent barrier properties, preventing water vapor and oxygen from eroding pharmaceuticals and extending their shelf life.
- Heat-Sealable: The material offers good heat-sealing performance, facilitating easy sealing during the packaging process and ensuring packaging integrity and airtightness.
- Strong Chemical Resistance: Resistant to various chemicals, protecting pharmaceuticals from contamination by external chemical environments.
- Easy to Process: The material is easy to cut, shape, and heat-seal, facilitating large-scale production and automated packaging processes.
Applications:
This PVC/PVDC composite material is primarily used for blister packaging of solid pharmaceuticals (such as tablets and capsules). Its excellent barrier properties and heat-sealing capabilities effectively protect pharmaceuticals during packaging, preventing erosion from moisture, oxygen, and chemicals, thereby ensuring pharmaceutical quality and stability. Additionally, the material’s ease of processing enhances packaging efficiency and reduces production costs.
- Flat Surface
The surface is flat, and the printing is neat, showcasing the high quality of your product. - Environmentally Friendly Materials
Made from brand-new, eco-friendly materials, ensuring the safety of drug packaging. - Support Customization
Colors, text patterns, and more can be customized according to customer requirements. - Factory Direct Supply
Equipped with excellent production facilities and mature processing technology.
